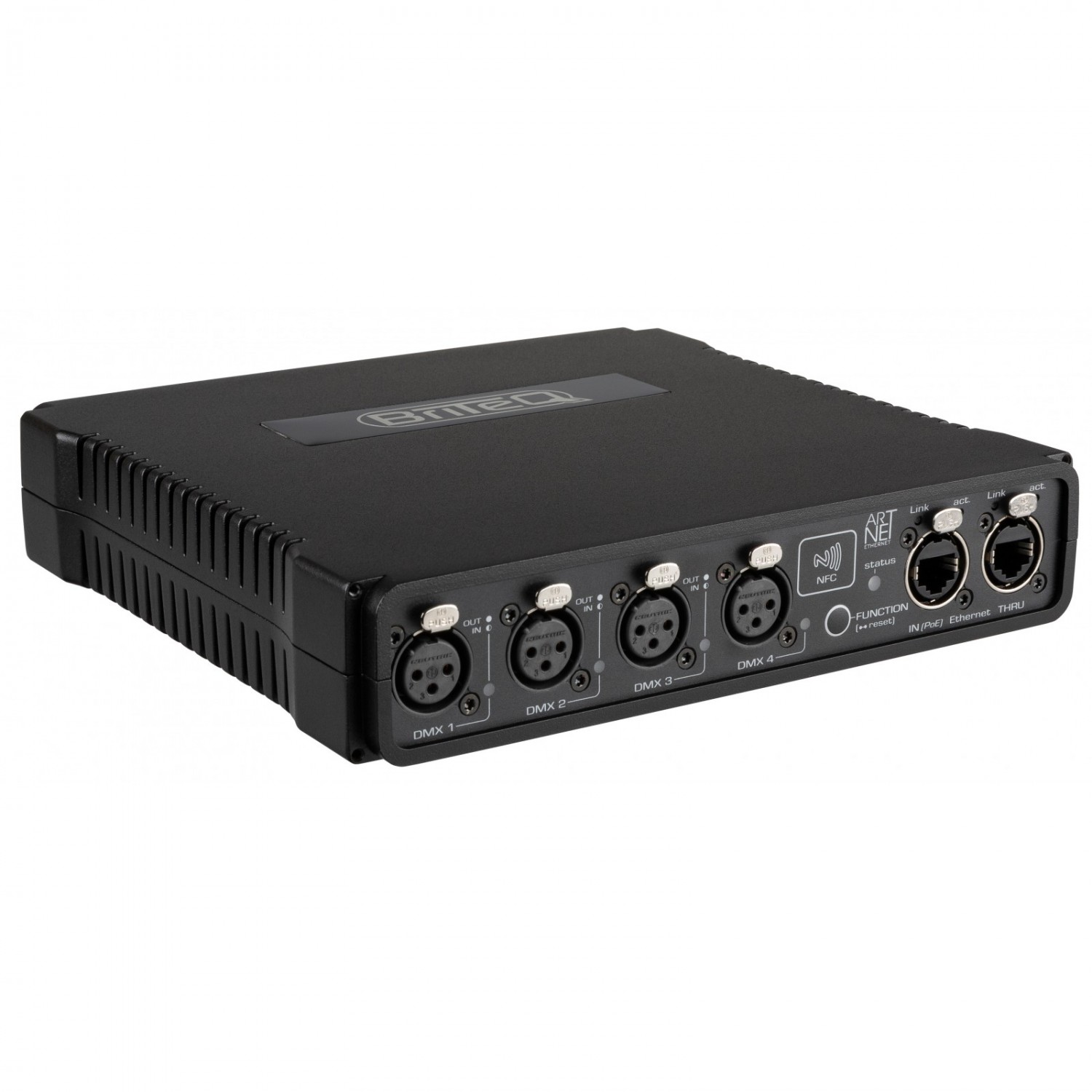

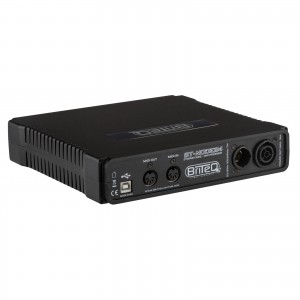

Briteq BT-NODE24 (3pin XLR)
High speed ArtNet & sACN Node with 4 highly configurable DMX ports (XLR 3-pin), web interface and compatible with DHCP, RDM, NFC and Gigabit Ethernet with PoE.
O dostępność zapytaj sprzedawcę
Znalazłeś produkt taniej?
Tutaj negocjuj cenę
Tutaj negocjuj cenę
Zwrot do 14 dni
od daty zakupu
od daty zakupu
Darmowa wysyłka
już od 399 zł
już od 399 zł
- High speed Art-Net and sACN Node with 4 highly configurable DMX ports.
- Gigabit Ethernet I/O based on high speed Marvell switch, without linking delay.
- Automatic Ethernet bypass on power fails.
- Perfect for install market with configurations over Art-Net support and DHCP.
- Complies to IEEE 802.3-2005 standard for fully compliant hi-speed Gigabit Ethernet over long cable lengths.

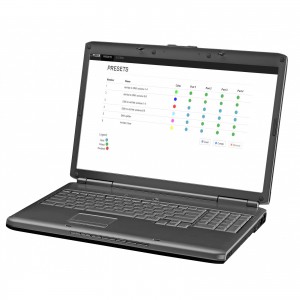

- Integrated web interface with support for mobile devices.
- NFC tag for easy website access on mobile devices.
- The 4 DMX ports can all be configured as in or outputs:
- Configured as input: normal mode
- Configured as output: single, LTP, HTP or ZERO mode.
- Multiple pre-defined presets available and custom presets.
- RDM over Art-Net compatible.
- All DMX ports are equipped with 3pin or 5pin Neutrik® XLR-connectors (both versions available)
- 100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.
- MIDI bridge functionality via Ethernet coming soon.
- Power options:
- 100-240VAC 50/60Hz Neutrik® TRUE-1 daisy chaining.
- PoE class 0 input. From 36V to 57V

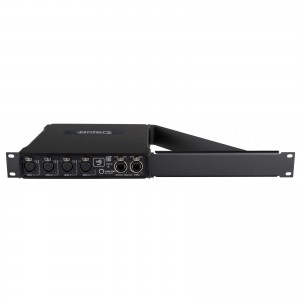

- Housing ½ 19” diecast housing with different installation options:
- 1-unit fits 1U 19” rack (19” adapter included)
- 2-units fit together in a 1U 19" rack (adapters included)
- Easy truss mounting with wall adapter (optional)
- Strong rubber protection adapters for stage use (optional)
- Developed by Briteq® in Belgium and made in Europe!
